Lagrangian FiLM NN

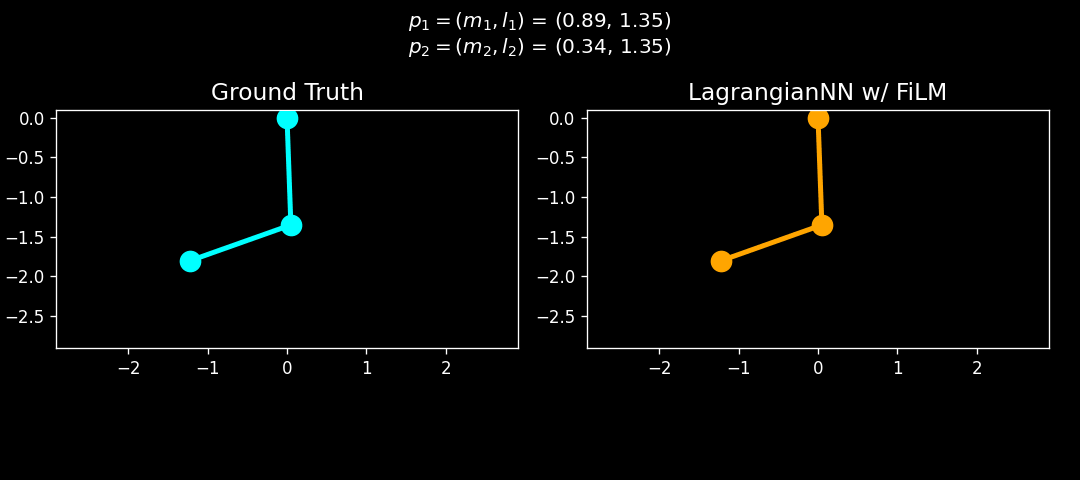

Compare to Ground Truth

This repo is a compact mechanics-meets-ML project: learn the dynamics of a double pendulum, but not just for one fixed setup. The goal is to train a single structured model that can handle a family of pendula with different masses and rod lengths.

The starting point is the main Lagrangian-network idea from Cranmer et al., Lagrangian Neural Network 2020, plus a more structured kinetic-energy design in the spirit of Lutter et al. Deep Lagrangian Networks: Using Physics as Model Prior for Deep Learning.

On top of that, this project adds Feature-wise Linear Modulation (FiLM) conditioning on the kinetic branch so the model can adapt across a family of double pendula instead of learning just one. It is not a polished package and it is not pretending to be a paper.

What This Project Does

Builds a NN model in JAX with Equinox and Optax outer layers that:

  • learns a structured Lagrangian in normalized coordinates
  • conditions the kinetic branch on pendulum parameters with FiLM
  • predicts accelerations by differentiating the learned Lagrangian with JAX

The setup is intentionally narrow: one system, one architecture family, one concrete implementation path.

What To Read First

  • Background: the Lagrangian mechanics idea and the Lagrangian-network viewpoint
  • How The Model Works: architecture choices, FiLM conditioning, loss design, and training details
  • Results: successes, failures, current limitations, and next steps
  • API: source modules if you want to inspect the code directly

Repo Map

  • src/data/: analytical double-pendulum dynamics, sampling, and dataset generation
  • src/lnn/: the LagrangianNN model
  • src/train.py: training loop and checkpoint saving
  • src/inference.py: rollout evaluation, normalized-energy plots, and OOD tests
  • src/simulate.py: RK4 rollout utilities
  • results/: plotting and animation helpers

Citation

If you use this repository in your research or projects, please cite it as:

@misc{corbetta2026lagrangianfilmnn,
  author       = {Corbetta, Matteo},
  title        = {Lagrangian FiLM NN: A JAX Implementation of a FiLM-Conditioned Lagrangian Neural Network for Double Pendula},
  year         = {2026},
  howpublished = {\url{https://github.com/matteocorbetta/lagrangian-film-nn}},
}
